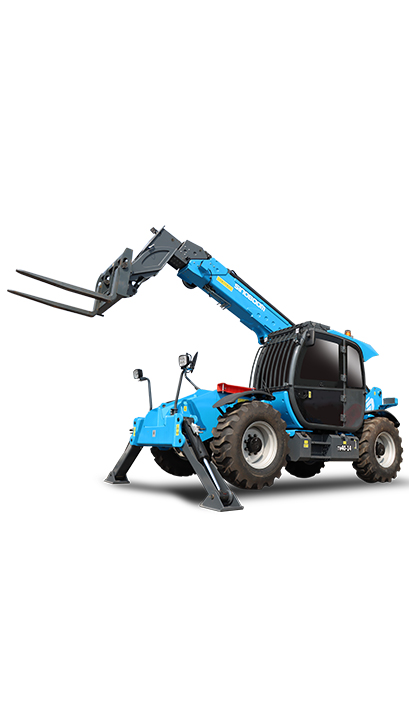

TH40-14

Stationary Multi-functional Telehandler

Working Height

13.6m

Platform Capacity

4000kg

Gradeability

50%

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

DIMENSIONS

Length

7.45m
Length(to face of fork)

6.23m
Width-Stowed

2.34m
Height

2.6m
Cab Width

0.95m
Ground Clearance

0.37m
Wheel Base

3.1m
Length/width/Height of Fork

0.36m x 1.08m x 0.78m

PRODUCTIVITY

Max. Lifting Capacity

4,000kg
Max. Lifting Height

13.6m
Max. Outreach

9.5m
Tilt-up Angle of Fork

14°
Tilt-down Angle of Fork

- 112°
Turntable Rotation

-
Max.Speed(Boom Retracted)

28km/h
Gradeability

50%
Approach/Departure Angle

30°/30°
Attachment Recognition System

POWER

Rated Power/Rotate Speed

74 kW/2200 rpm
Control Voltage

12V DC
Hydraulic Tank Capacity

222L
Diesel Fuel Tank Capacity

142L

WEIGHT

Weight

12,100kg
Standards Compliance

GB

Download Brochures

Standard features

Wet brake axle
Two-speed transmission
Four Wheel Drive
Three steering modes, 4WD, 2WD and Crab
Tip-over protection system
Fault diagnosis system
Bus control walve
Four-wheel brake
7-inch smart screen
Automatic engine speed-up function
Attachment 126" rotation and levelling
Electronically controlled proportional joystick

Optional features

Reverse Radar
360"panoramic camera system
Optional attachments: fork, work platform, bucket, clamp, vacuum suction device, grapple bucket (in development)
