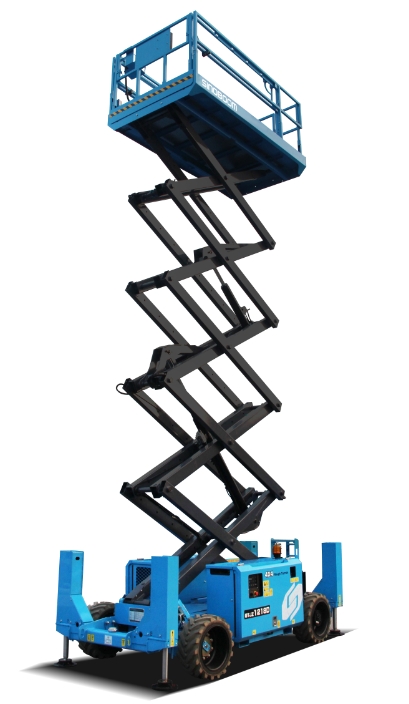

1018RD(3369RD)

ENGINE POWERED ROUGH TERRAIN SCISSOR LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
DIMENSIONS

  • Max Working Height

    12m (39'4.4")

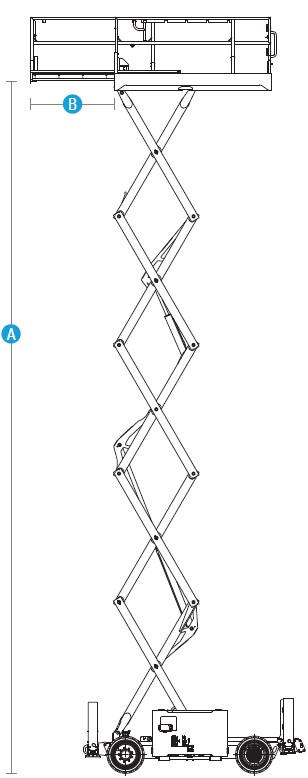

  • [A] Max Platform Height

    10m (32'9.7")

  • [B] Max Horizontal Extension

    1.5m (4'11.1'')

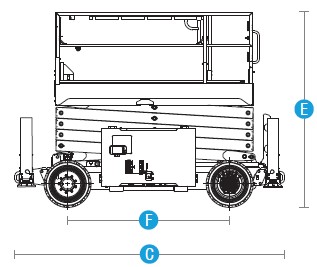

  • [C] Length-Stowed (Outriggers/Without Outriggers)

    3.8m / 3.19m (12'5.6" / 10'5.6")

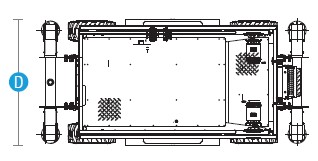

  • [D] Width-Stowed

    1.78m (5'10")

  • Height -stowed (Rail Folded)

    1.94m (6'4.4")

  • [E] Height -stowed(Rail Unfolded)

    2.56m (8'4.8")

  • [F] Wheelbase

    2.28m (7'5.8")

  • Ground Clearance

    0.22m (8.66")

  • Platform Dimensions(LxWxH)

    2.8m×1.6m×1.1m (9'2.2"×5'3"×3'7.3")
PRODUCTIVITY

  • Platform Allowable Occupants(Indoor)

    4 persons

  • Platform Allowable Occupants(0utdoor)

    2 persons

  • Platform Capacity

    450kg (992lbs)

  • Drive Speed-Stowed

    0～5.6 km/h (0～3.5mph)

  • Drive Speed-Raised

    0～0.48 km/h (0～0.3 mph)

  • Elevation Time(Unloaded)

    42s～52s

  • Descent Time(Unloaded)

    40s~50s

  • Gradeability

    0.35

  • Turning Radius(Inside/Outside)

    2.11m / 4.6m (6'11.1" / 15'1.1")

  • Tilt Rating(Front to Back)

    3°

  • Tilt Rating(Side to Side, Outrigger Tele-ln/Tele-Out)

    2° / 0.8°

  • Max Outrigger Leveling(Front to Back)

    5.3° (front) / 4.2° (back)

  • Max Outrigger Leveling(Side to Side)

    11.7°

  • Tyres-solid

    26×12-16.5/Solid
POWER

  • Power Source

    Kubota D1105-E4B-EU-X1

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    48L (10.6 gal (UK) / 12.7 gal (US))

  • Hydraulic System Capacity

    72L (15.8gal (UK) / 19gal (US))
WEIGHT

  • Weight(Outriggers/Without Outriggers)

    4,110 kg (9,061 lbs) / 3,650 kg (8,046 lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC/AS
Download Brochures
Standard features
  • 4 WD × 2 WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Foldable guardrail
  • Foam-filled non-marking tires
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Fault diagnosis system
  • Horn & buzzer
  • Drivable at full height
Optional features
  • AC power to platform
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • 7.4m platform
