1623RD (5389RD)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
DIMENSIONS

  • Max Working Height

    18.2m (59'8.5")

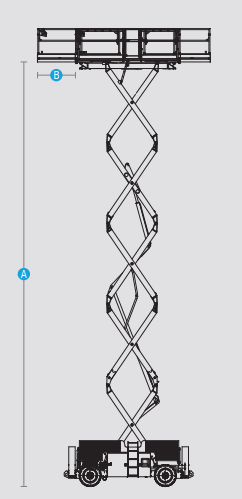

  • [A] Max Platform Height

    16.2m (53'1.8")

  • [B] Max Horizontal Extension

    1.5m/1.2m (4'11.1"/3'11.2")

  • [C] Length-Stowed (Outriggers/Without Outriggers)

    4.88m (16')

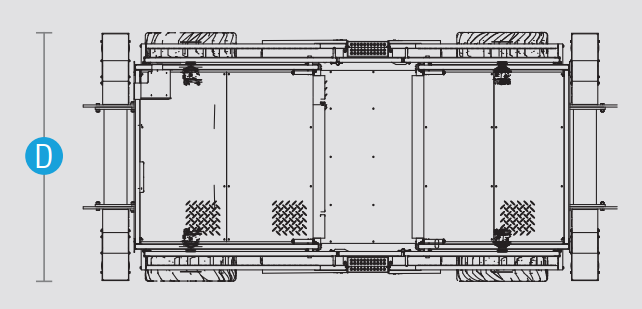

  • [D] Width-Stowed

    2.31 m (7'7")

  • Height -stowed (Rail Folded)

    2.42 m (7'11.3")

  • [E] Height -stowed(Rail Unfolded)

    3.18 m (10'5.2")

  • [F] Wheelbase

    2.85 m (9'4")

  • Ground Clearance

    0.36m (1'2.2'')

  • Platform Dimensions(LxWxH)

    6.5m platform: 3.98m×1.83m×1.1m (13'×6'×3'7") 7.4m platform: 4.84 m×1.82 m×1.1 m (15'10.6"×6'×3'7")
PRODUCTIVITY

  • Platform Allowable Occupants(Indoor)

    4 Persons

  • Platform Allowable Occupants(0utdoor)

    4 Persons

  • Platform Capacity

    680kg (1,499lbs)

  • Drive Speed-Stowed

    6.1 km/h (3.8 mph) Yanmar engine 5.0 km/h (3.1 mph) Kubota engine

  • Drive Speed-Raised

    1.1 km/h (0.7 mph)

  • Elevation Time(Unloaded)

    70s~90s

  • Descent Time(Unloaded)

    45s～55s

  • Gradeability

    0.4

  • Turning Radius(Inside/Outside)

    2.2m/5.3m (7'2.6"/17'4.7")

  • Tilt Rating(Front to Back)

    3°

  • Tilt Rating(Side to Side, Outrigger Tele-ln/Tele-Out)

    2°

  • Max Outrigger Leveling(Front to Back)

    7°

  • Max Outrigger Leveling(Side to Side)

    12°

  • Tyres-solid

    315/55D20/Foam-Filled
POWER

  • Power Source

    Yanmar / 4TNV88C / 35.5 kW(48.3 hp) / EU Stage 5 / EPA Tier 4 Yanmar / 4TNV88 / 35.3 kW(48 hp) / China Stage 4 Kubota / D1105 / 18.2 kW(24.7 hp)

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    110L (24 gal (UK) / 29 gal (US))

  • Hydraulic System Capacity

    107L/23.5 gal(UK)/28 gal(US)
WEIGHT

  • Weight(Outriggers/Without Outriggers)

    Yanmar engine: 8,210 kg (18,100 lbs) Kubota engine: 8,000 kg (17,637 lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
