SPT52HJ - SINOBOOM Aerial Work Platforms

HOME>Products>Spider Lift>SPT52HJ

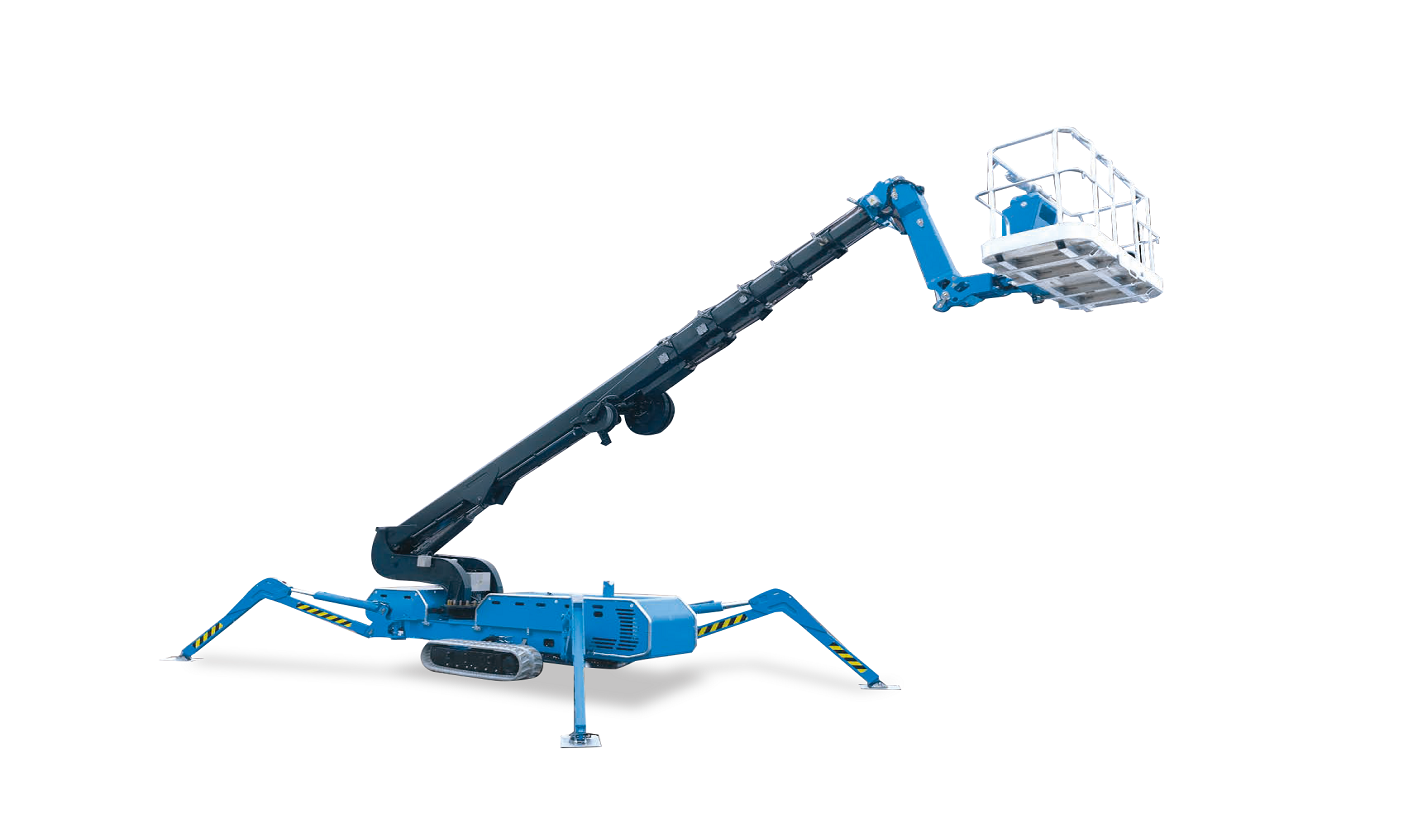

SPT52HJ

Spider Lifts

Working Height

52m

Platform Capacity

200kg

Gradeability

20° /37%

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

DIMENSIONS

Max Working Height

52 m
Max.Outreach

17 m
Turntable Rotation

375°
Platform Rotation

+/-90°
Jib Rotation
Gradeability

20° /37%
Platform Capacity

200 kg

PRODUCTIVITY

Length-Stowed

9.3m
Width-Stowed

1.25m
Height-Stowed

2.1m
Aluminium Platform Dimensions(LxW)

0.8m x 1.4m
Weight

13,500kg
Bi-energy Hybrid

Yes
Floating Tracks

Download Brochures

Standard features

Automatic stability& outreach control
Computer controlled (can-bus)
Proportional control of all functions
Self-propelled
Battery powered with charger (400 Ah)
Double jib
375" turret rotation, with integrated stop
Non marking crawlers
+/-90° basket rotation
Individual setting of each outrigger
Electronic checking of the power system (PLC)
Manual pump system for emergencylowering
Ability to self-load onto trucks or trailers
Double crawler system
Front crawler section adjustable
Special outrigger footplates
Adjustable rack width
Minimum width only 1.25 m
Space for tools etc. in basket
Storage room with lock in chassis
Diesel engine
Wireless remote control of all functions
Sinoboom Service Tool (remote access via laptop)
