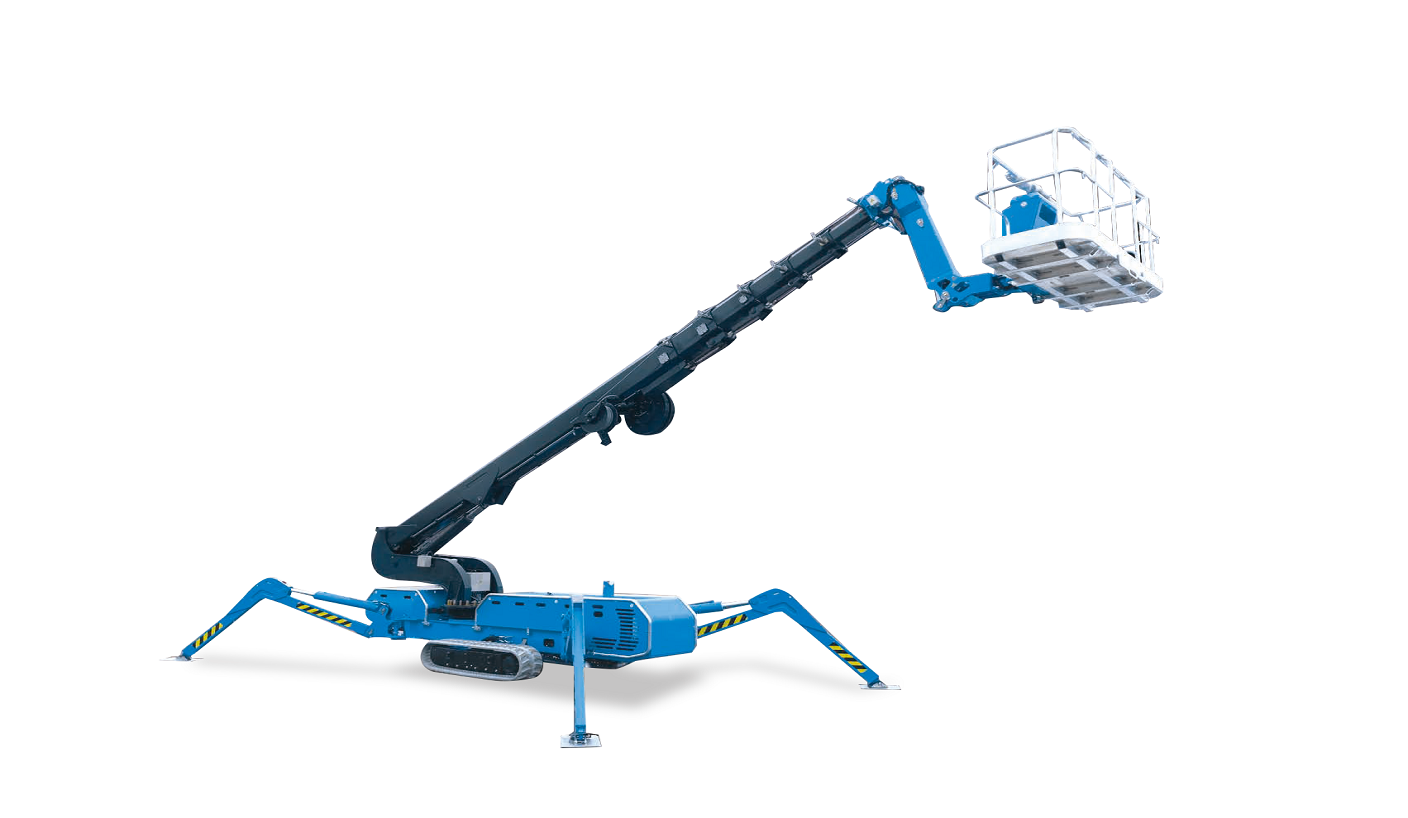

SPT38HJ Plus
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
DIMENSIONS
-
Max Working Height
38m -
Max.Outreach
16.5 -
Turntable Rotation
16.5 -
Platform Rotation
+/-90° -
Jib Rotation
200° -
Gradeability
25° /47% -
Platform Capacity
25° /47%
PRODUCTIVITY
-
Length-Stowed
8.5m -
Width-Stowed
1.42m -
Height-Stowed
1.98m -
Aluminium Platform Dimensions(LxW)
0.8*2.0m -
Weight
8,640kg -
Bi-energy Hybrid
Yes -
Floating Tracks
Standard features
- Maintenance-free battery
- Engine protection against restart
- Highylow speed travel switch
- Dual emergency descent system
- Wireless remote control
- Proportional control
- Remote control intelligent display
- 2-load capacity work platform
- Multi-stage adjustable ground clearance
- GPS
- multi-position outriggeradjustment
- Electrophoretic coating process
- +/-90° basket rotation
- In-place steering
- Outrigger load weighing and limit system
- Quick-release work platform
- Kubota engine, 3-cylinder, 18.2 kW
- Electro self-leveling platform
- Variable crawler height and width during travel
- Outrigger pad
- Non-marking crawlers
- Remote fault diagnosis system
- Weighing system
- Automatic braking system
- Hybrid power system
- AC power to platform
- Automatic leveling legs with individual settings
- Buzzer/waming light safety alert
- Torque limiting system
