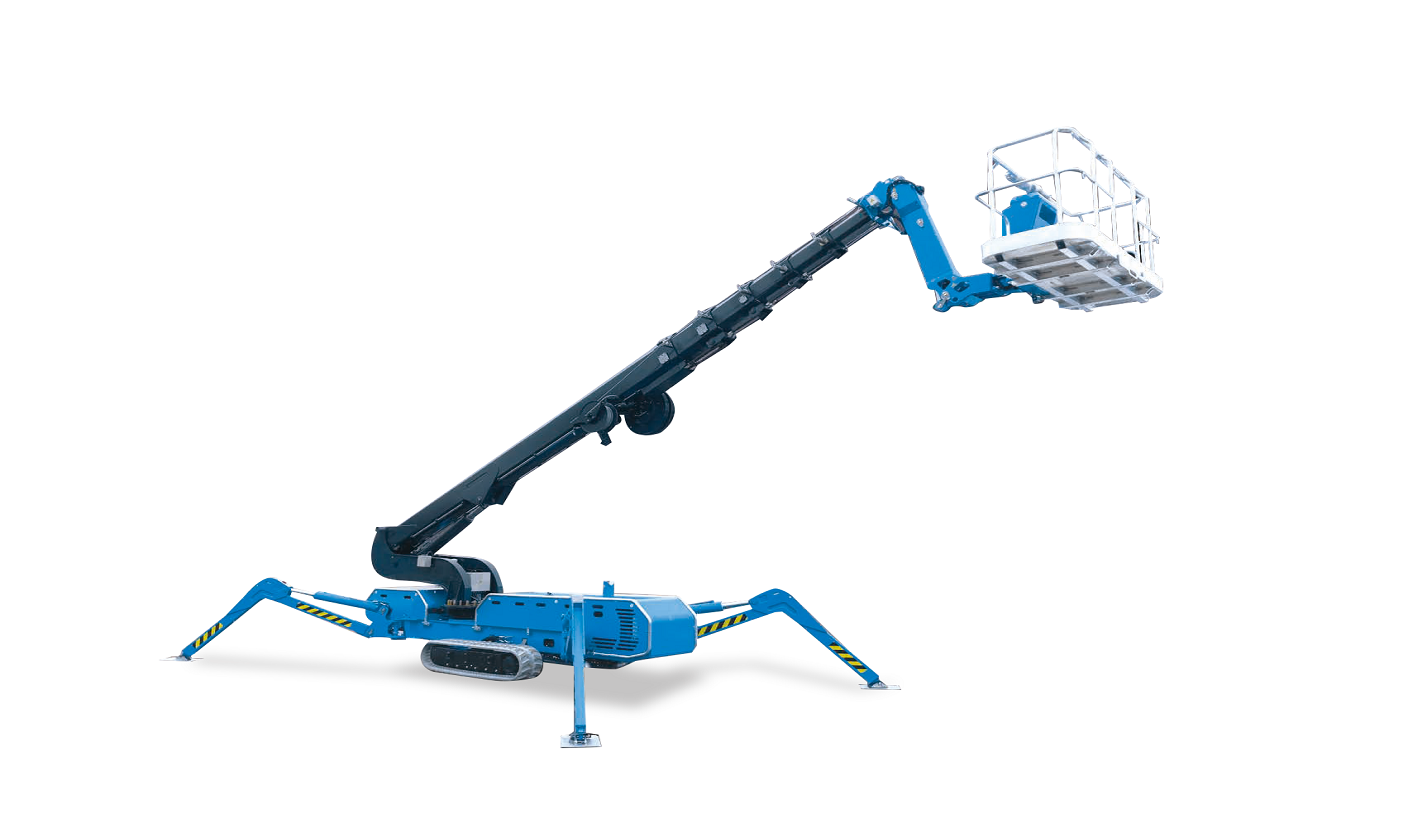

SPA27J - SINOBOOM Aerial Work Platforms

HOME>Products>Spider Lift>SPA27J

SPA27J

Spider Lifts

Working Height

27m

Platform Capacity

230kg

Gradeability

20°/30%

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

DIMENSIONS

Max Working Height

27m
Max.Outreach

14.2
Turntable Rotation

360° continuous
Platform Rotation

±90°
Jib Rotation

200°
Gradeability

20°/30%
Platform Capacity

230kg

PRODUCTIVITY

Length-Stowed

5.55m
Width-Stowed

0.9 / 1.4m
Height-Stowed

1.99m
Aluminium Platform Dimensions(LxW)

0.8m × 1.4m
Weight

3900kg
Bi-energy Hybrid

Yes
Floating Tracks

Download Brochures

Standard features

Maintenance-free battery
2-stage outrigger adjustment
Non-marking crawlers
Document box
Electrophoretic coating process
Remote fault diagnosis system
High/low speed travel
+/-90° basket rotation
Load weighing system
Triple emergency descent system
In-place steering
Automatic braking system
Wireless remote control
Proportional control
Quick-release work platform
AC power to platform
Intelligent display
Kubota engine, 3-cylinder, 16.1 kW
One-touch leg leveling and individual setting
Two-stage load capacity work platform
Self-leveling platform
Buzzer/Warning light safety alert
Multi-stage ground clearance adjustment for undercarriage
Variable undercarriage height and width during travel

Optional features

Optional charging adapter
Outrigger pad
Inverter
