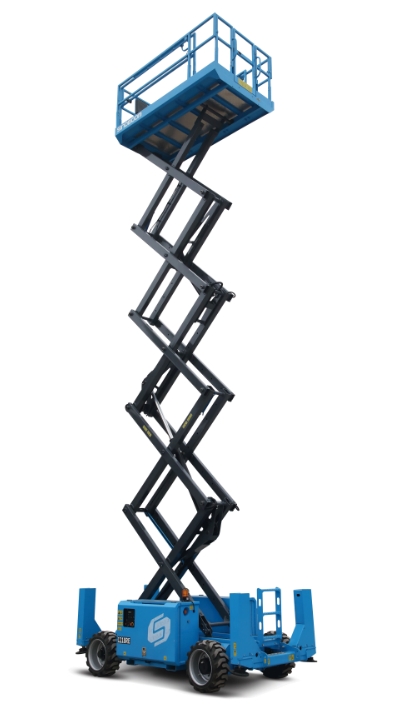

1018RE (3369RE)

ELECTRIC ROUGH TERRAIN SCISSOR LIFTS

Working Height

12m

Platform Capacity

450kg

Gradeability

35%

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Product Highlights

Easy maintenance

■ Two-sided hatchback door design, for convenient maintenance ■ Swing-out engine compartment for easy maintenance
High efficiency

■ 1.6m(5'3") wide platform with one-way extension platform ■ One-click leveling, easy work on uneven road surfaces
Excellent performance

■ Up to 40% gradeability, easily handling outdoor needs ■ Stable movement, copes well with potholed ground

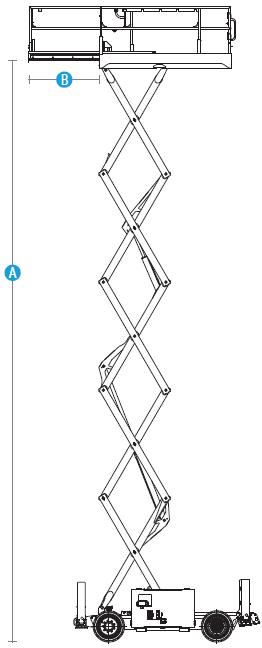

DIMENSIONS

Max Working Height

12m (39'4.4")
[A] Max Platform Height

10m (32'9.7")
[B] Max Horizontal Extension

1.5m (4'11.1")
[C] Length-Stowed (Outriggers/Without Outriggers)

3.8m/3.19m (12'5.6"/10'5.6")
[D] Width-Stowed

1.77m (5'9.7")
Height -stowed (Rail Folded)

1.96m (6'5.2")
[E] Height -stowed(Rail Unfolded)

2.59m (8'6")
[F] Wheelbase

2.28m (7'5.8")
Ground Clearance

0.22m (8.66")
Platform Dimensions(LxWxH)

2.8m×1.6m×1.1m (9'2"×5'3"×3'7")

PRODUCTIVITY

Platform Allowable Occupants(Indoor)

4 Persons
Platform Allowable Occupants(0utdoor)

2 Persons
Platform Capacity

450kg (992lbs)
Drive Speed-Stowed

0~6 km/h (0~3.7 mph)
Drive Speed-Raised

0~0.48 km/h (0~0.3 mph)
Elevation Time(Unloaded)

42s~52s
Descent Time(Unloaded)

40s~50s
Gradeability

0.35
Turning Radius(Inside/Outside)

2.11m/4.6m (6'11"/15'1")
Tilt Rating(Front to Back)

3°
Tilt Rating(Side to Side, Outrigger Tele-ln/Tele-Out)

2°/0.8°
Max Outrigger Leveling(Front to Back)

5.3° (front)/4.2° (back)
Max Outrigger Leveling(Side to Side)

11.7°
Tyres-solid

26x12-16.5 /Solid foam-filled

POWER

Power Source

48V, 390Ah
Drive Mode

2WD×2WS
Fuel Tank Capacity - Diesel

-
Hydraulic System Capacity

72L (15.8 gal(UK) / 19 gal(US))

WEIGHT

Weight(Outriggers/Without Outriggers)

4,510kg (9,943lbs) / 4,050kg (8,929lbs)
Standards Compliance

CE/ANSI/EAC

Download Brochures

Standard features

2WDX2WS
Forklift pockets and lifting points
Proportional control
Manual storage box
Flashing beacon
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Foam-filled non-marking tires
Foldable guardrail
Auto braking system
Overload sensing system
Oscillating axle
Fault diagnosis system
Horn & buzzer
Drivable at full height

Optional features

AC power cable to platform
Platform work light
Overhead anti-collision device
Telematics-ready connector
7.4m platform
