HOME>Products>Scissor Lift>1218RE (4069RE)

1218RE (4069RE)

ELECTRIC ROUGH TERRAIN SCISSOR LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS

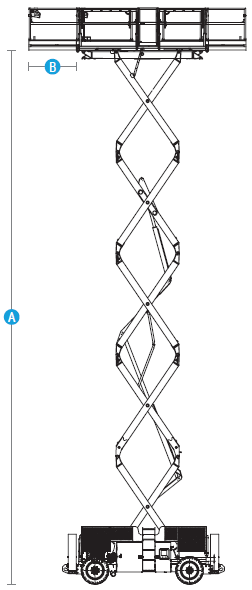

DIMENSIONS

  • Max Working Height

    14.2m (46'7.1")

  • [A] Max Platform Height

    12.2m (40'0.3'')

  • [B] Max Horizontal Extension

    1.5m (4'11")

  • [C] Length-Stowed (Outriggers/Without Outriggers)

    3.8m/3.19m (12'5.6"/10'5.6")

  • [D] Width-Stowed

    1.77m (5'9.7")

  • Height -stowed (Rail Folded)

    2.11m (6'11.1")

  • [E] Height -stowed(Rail Unfolded)

    2.75m (9'0.3'')

  • [F] Wheelbase

    2.28m (7'5.8'')

  • Ground Clearance

    0.22m (8.66'')

  • Platform Dimensions(LxWxH)

    2.8m×1.6m×1.1m (9'2"×5'3"×3'7")
PRODUCTIVITY

  • Platform Allowable Occupants(Indoor)

    3 Persons

  • Platform Allowable Occupants(0utdoor)

    2 Persons

  • Platform Capacity

    365kg (805lbs)

  • Drive Speed-Stowed

    0~6 km/h (0~3.7mph)

  • Drive Speed-Raised

    0~0.48 km/h (0~0.3mph)

  • Elevation Time(Unloaded)

    55s~65s

  • Descent Time(Unloaded)

    50s~60s

  • Gradeability

    0.35

  • Turning Radius(Inside/Outside)

    2.11m/4.6m (6'11"/15'1")

  • Tilt Rating(Front to Back)

    3°

  • Tilt Rating(Side to Side, Outrigger Tele-ln/Tele-Out)

    2°/0.8°

  • Max Outrigger Leveling(Front to Back)

    5.3° (front)/4.2° (back)

  • Max Outrigger Leveling(Side to Side)

    11.7°

  • Tyres-solid

    26×12-16.5/Solid foam-filled
POWER

  • Power Source

    48V, 390Ah

  • Drive Mode

    48VDC

  • Fuel Tank Capacity - Diesel

    -

  • Hydraulic System Capacity

    72L (15.8 gal(UK)/ 19 gal(US))
WEIGHT

  • Weight(Outriggers/Without Outriggers)

    5,580 kg(12,302 lbs) / 5,110 kg(11,266 lbs)

  • Standards Compliance

    CE/ANSI/EAC
Download Brochures
Standard features
  • 2WDX2WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Foam-fflled non-marking tires
  • Foldable guardrail
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Fault diagnosis system
  • Horn & buzzer
  • Drivable at full height
Optional features
  • AC power cable to platform
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • 7.4m platform
